Increased Action By Intelligent Power Distribution
KEY FACTS
POWERFUL: 35,000 NM
Powerful transfer case with an torque of 35,000NM
MAXIMUM MOBILITY
Complete range for heavy-duty trucks
LIGHT WEIGHT AND COMPACT
Compact design and light weight
What can VG 2700 > Transfer case provide?
The VG 2700 can handle an input torque of 35,000 Nm and is the highest performance serial produced transfer case in the market. This completes the range of ZF transfer cases on the top end and follows the trend of using more powerful engines in heavy-duty trucks.
DETAILS
Customer Benefits
High input rotation speed up to 2,800 rpm Integrated oil pump for external oil cooling function (option) Mounting possible for hydraulic pump on idler shaft (for emergency steering) Ratio onroad / offroad: 0.91 / 1.407
Function

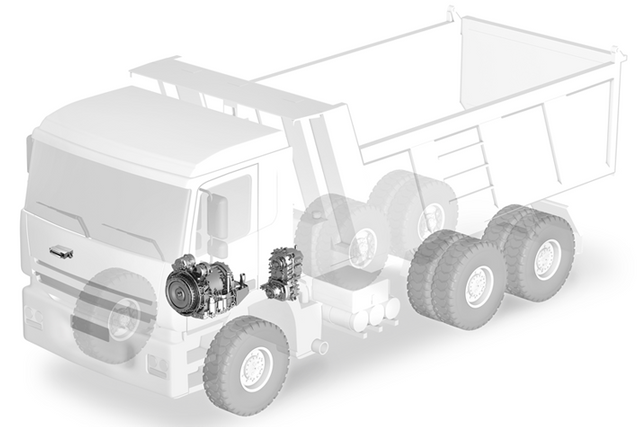

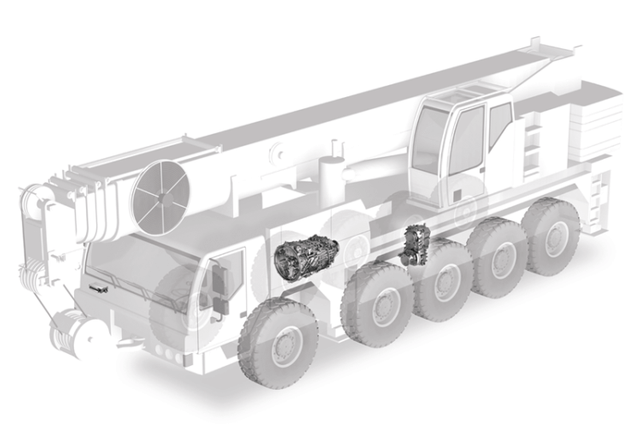

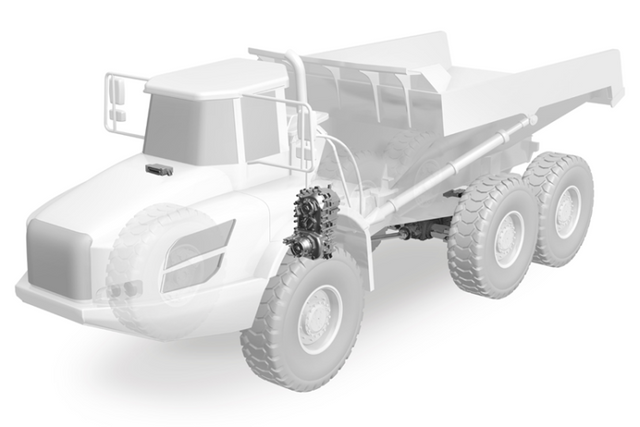

ZF All-Wheel Drive Systems for Commercial and Special Vehicles
No reversal of rotational direction thanks to 3-shaft design Suspension via three and four screw-on surfaces, respectively Permanent all-wheel drive with lockable planetary gear differential, alternative: front axle activation and deactivation, both pneumatically operated Pneumatic two-speed shift system Robust, weight-optimized design Ground, noise-optimized gearing Robust sealing system, fordable thanks to hose breather, if required Integrated oil pump (partly optional), designed for external cooling system ADM-capable (Automatic Drive-Train Management)
